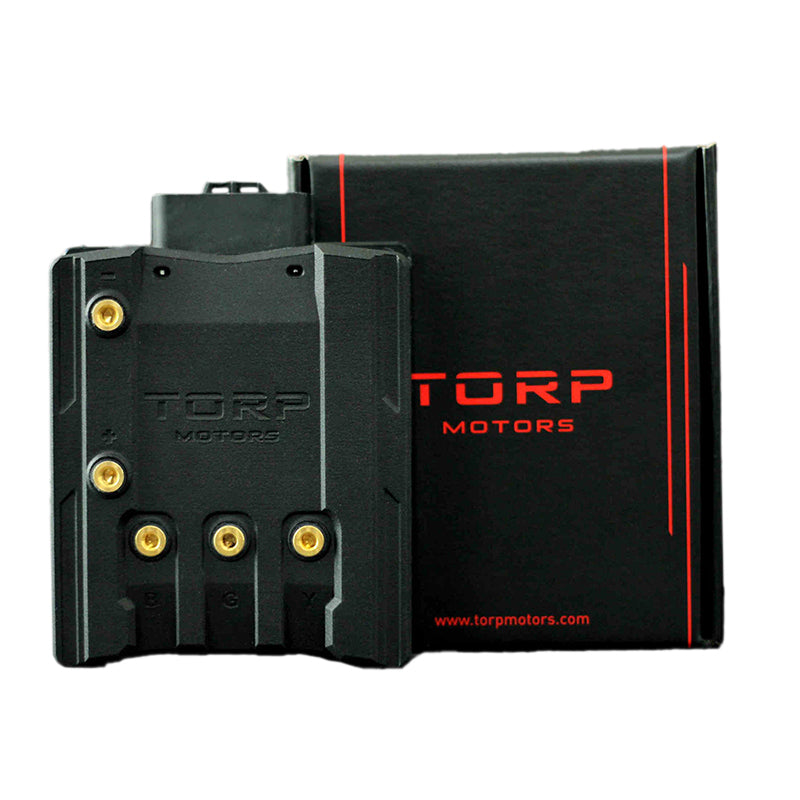

TORP TC1000 / TALARIA Sting controller
TORP TC1000 / TALARIA Sting controller
Couldn't load pickup availability
Available within 7 days
- Download the Official TC1000 Installation Manual .
- The Display Torp Installation Manual
- The Display Torp V2 Color Installation Manual
- The TC1000 User Manual for TALARIA Sting

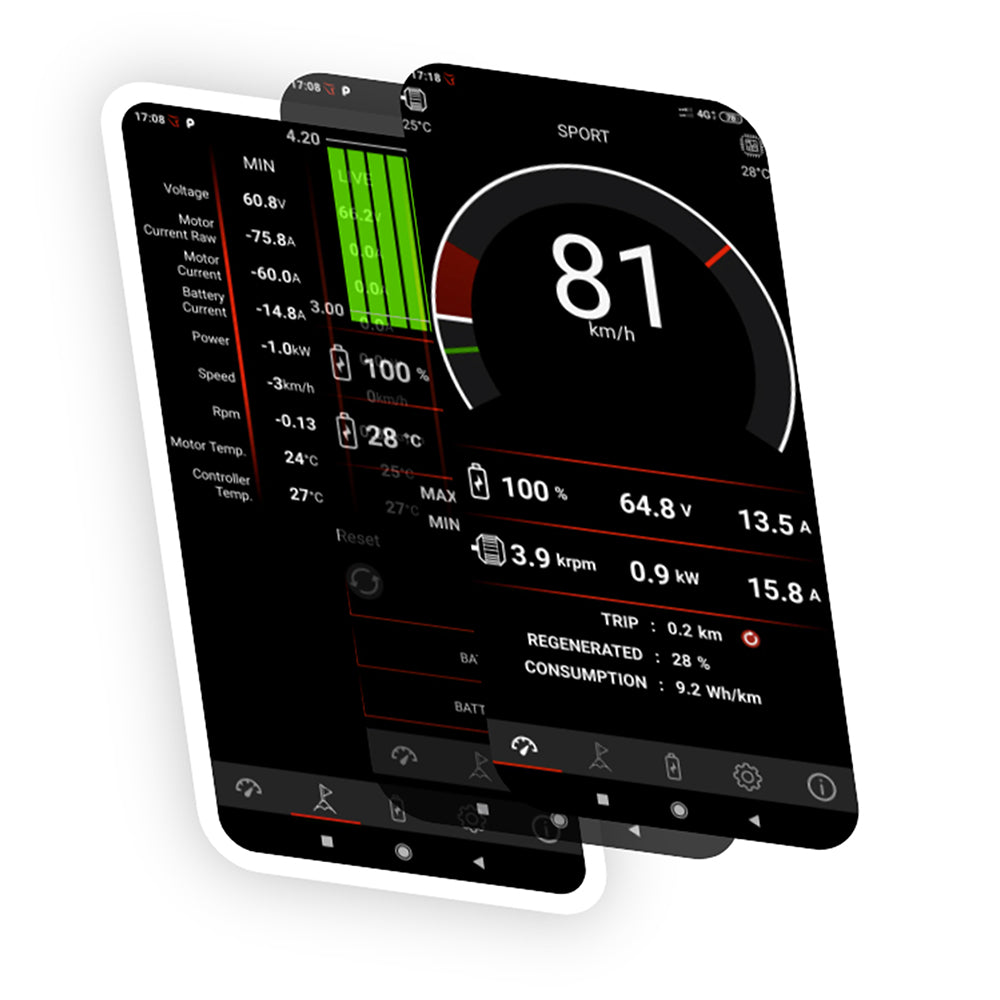

Download the Torp app:
More information
-
Description

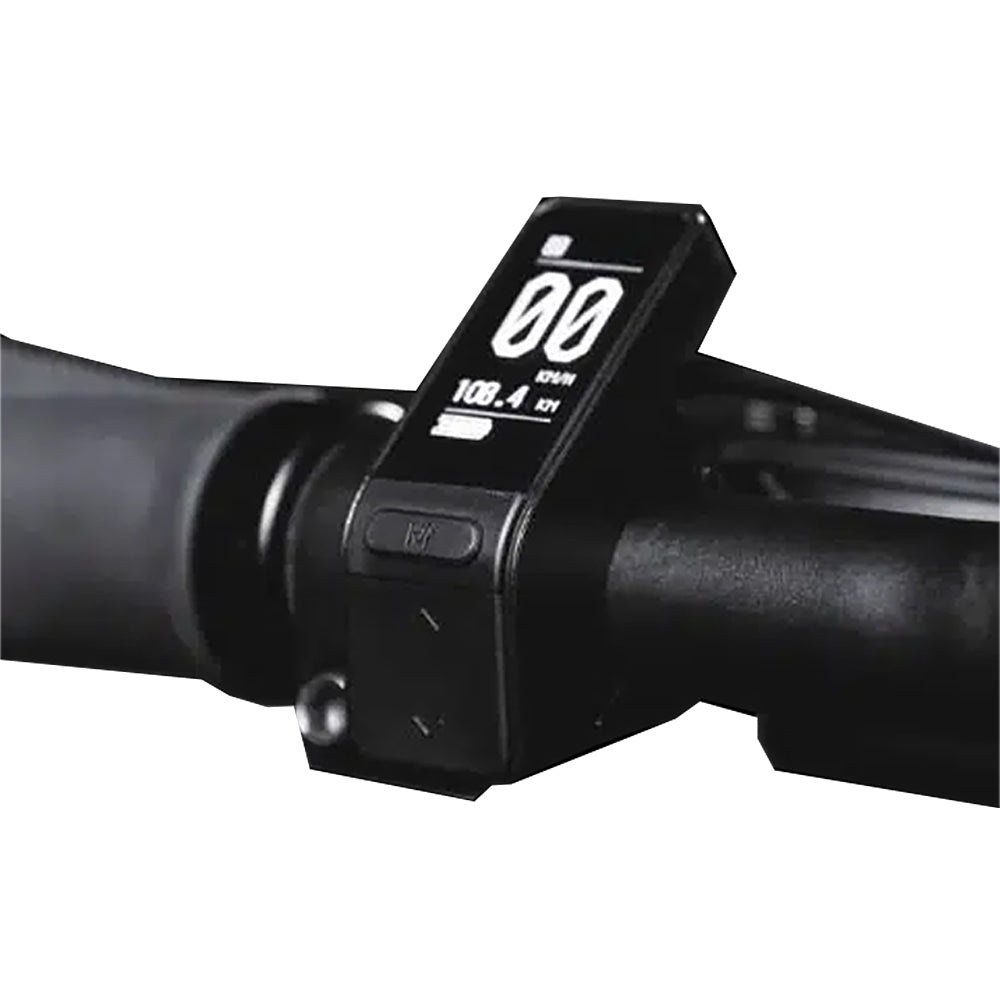

Powerful. Light. Simple. TORP controllers are the most plug & play on the market. That is to say that the TC1000 can be installed in 20 minutes on your TALARIA, be calibrated and adjusted thanks to a very ergonomic application while integrating perfectly with your motorcycle. The TORP TC1000 will give you a huge power gain with ease since this controller is capable of delivering up to 50kW of power. If you find the TC500 too light on your Sting , you also have the option of mounting it on it, the best being to couple it with a custom engine to exploit all its power . It will then also be compatible with the Torp display , allowing quick access to all your statistics without taking out your smartphone.
Please note that installing a controller to increase the machine's performance will invalidate the approval and therefore prohibit driving on public roads.
-
Features
- Field-oriented control (FOC)
- Supported Batteries: 60V to 80V nominal 22S (92.4V fully charged)
- Maximum power: 50kW
- Maximum power with custom battery : 18kW
- Maximum power with TM25 motor and performance battery : 25kW
- Sensor (HALL encoder) and sensorless control
- Maximum battery current: 700A
- Maximum phase current: 1000A
- Efficiency up to 99%
- Operating temperature: -15 to 75 C°
- Bluetooth communication
- Pre-calibrated : Easy calibration via mobile app
- Different regenerative braking and acceleration modes
- Weight: 1.3 kg
- Protection: IP67
-
Strong points

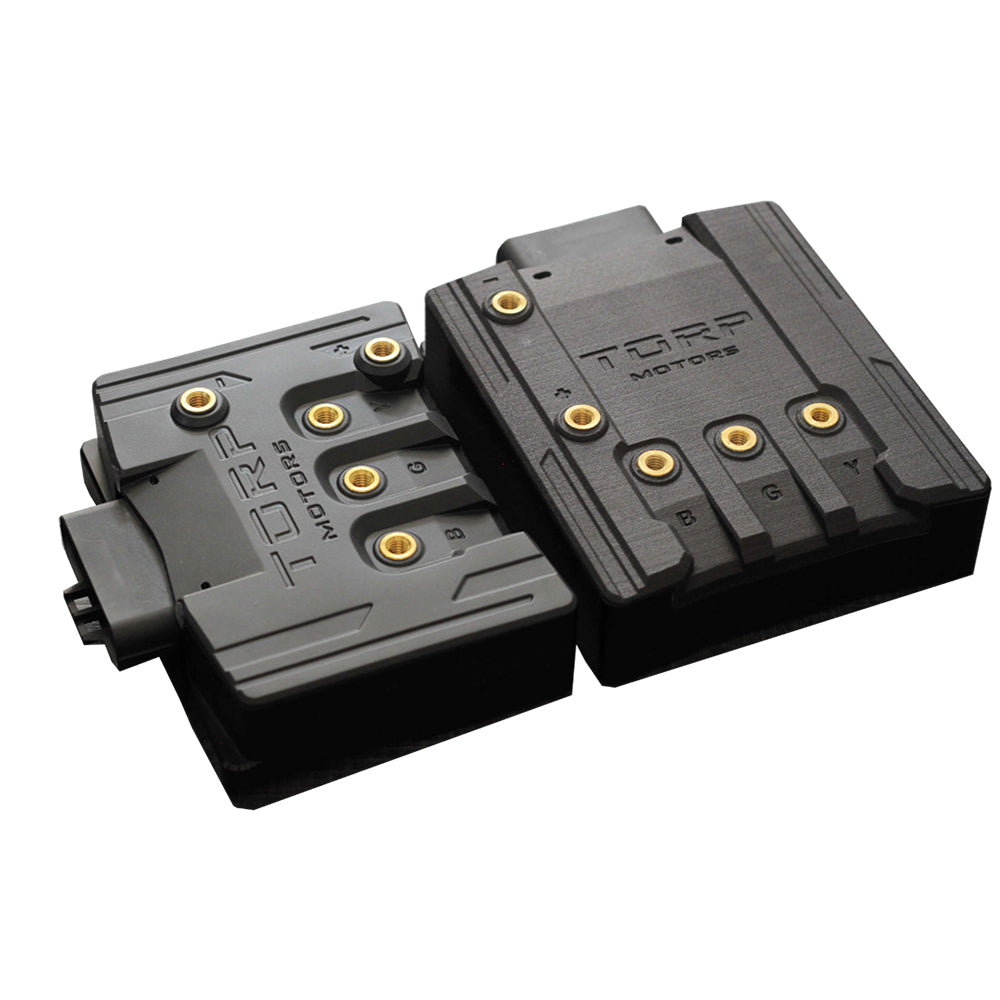

- 100% more power than the TC500 in just 30% more space!

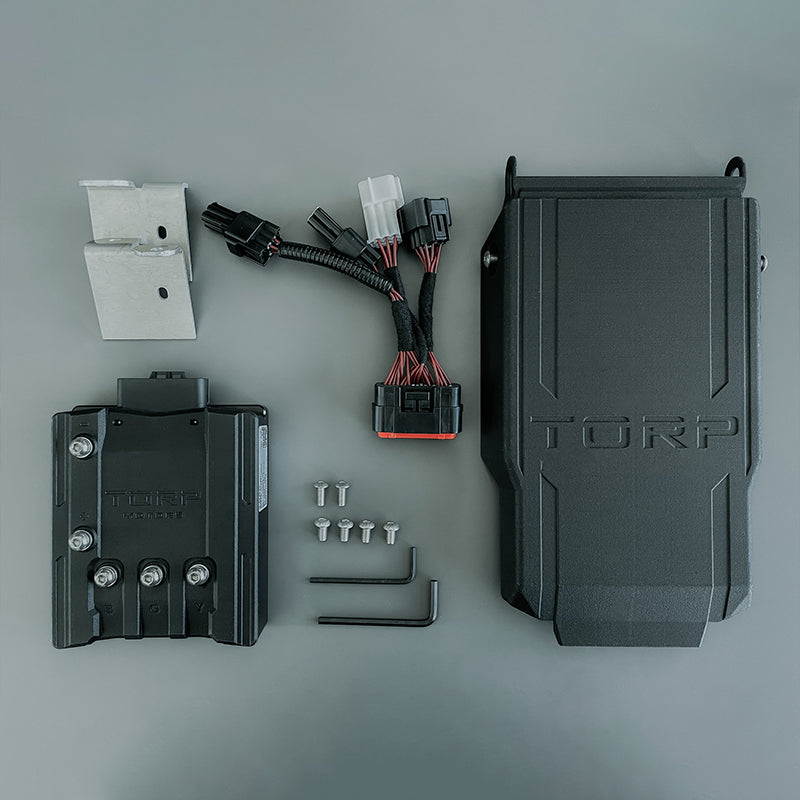

- 100% plug and play and very easy to install and use in 20 minutes
- Over-current, over-voltage, under-voltage and over-temperature protection
- 100% compatible with harness and original equipment
- Supported original features : Sport/Eco , kickstand , kill switch , brake sensor for regeneration , drop sensor and speed on the original screen . Traction control , reverse and battery communication available in upcoming software updates for Ultra Bee
- Regular firmware updates
- Communication with the original BMS
What power according to my motorcycle?
TC1000 for SUR-RON Light Bee
- Original X controller + original battery: 4.8 kW
- TC1000 + original battery* (32Ah / 34Ah / 40Ah): 7 kW
- TC1000 + standard 38 Ah battery ( depending on the battery manufacturer ): 8.5 kW
- TC1000 + Custom 60V battery **: 13.5 kW
- TC1000 + Custom 72V battery: 17 kW

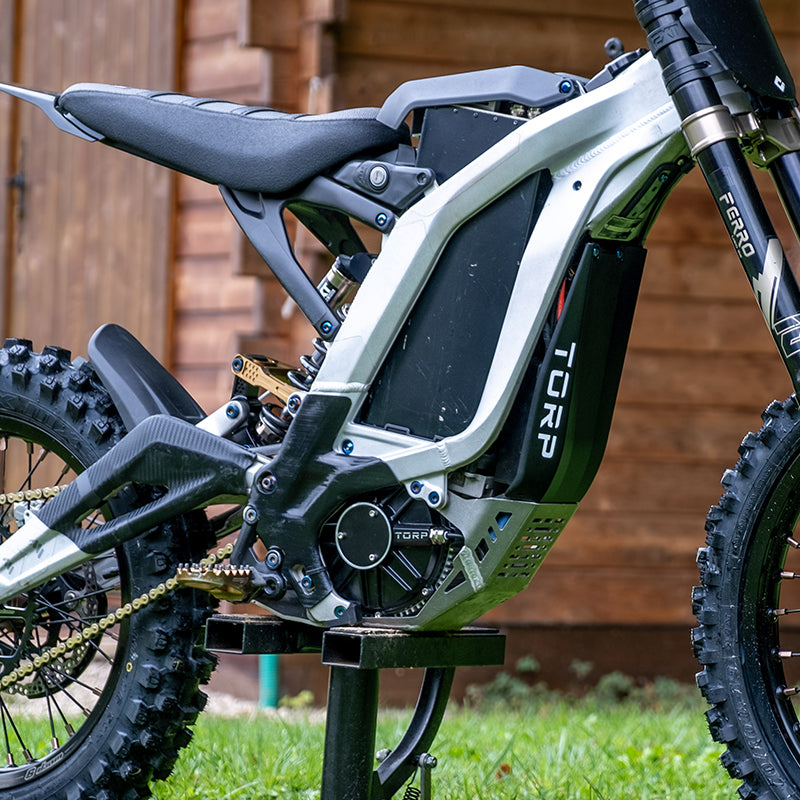

- TC1000 + Custom 72V battery + TM25 : 27 kW
*It is not necessary to bypass the battery with the TC1000, but if you use a bypass battery, the TC1000 will still work with it.
**Depending on Voltage Sag.
TC1000 for TALARIA Sting TL4000 / MX4
- Original controller + original battery: 7 kW
- TC1000 + original battery***: 11.5 kW
- TC1000 + Custom 60V battery **: 15 kW
- TC1000 + Custom 72V battery: 18 kW
***Important: Currently, the controller CANNOT communicate with the original Talaria battery produced by SCUD. Other controller features are intact. Click for more information .
**Depending on Voltage Sag.
TC1000 for TALARIA Sting TL3000 / MX3
- Original controller + original battery: 6 kW
- TC1000 + original battery: 8 kW
- TC1000 + Custom 60V battery **: 13.5 kW
- TC1000 + Custom 72V battery: 18 kW
**Depending on Voltage Sag.
"Jo & Will's Word"
The Torp TC500 had already democratized and revolutionized the ability to change your controller yourself , well the Croatian team is keeping up the momentum with the TC1000 for TALARIA! Did you have perfect control of your machine? Hang on , because now you won't often be stuck in the corner!
